ZEISS DotScan
Sensor optyczny do przechwytywania powierzchni swobodnych
Głowice z chromatycznym sensorem światła białego umożliwiają bezstykowe rejestrowanie powierzchni mierzonego obiektu. Doskonale sprawdzają się w przypadku analizy delikatnych, odblaskowych lub niskokontrastowych powierzchni, które mocno utrudniają zastosowanie innych sensorów optycznych.
Funkcjonalności
![ZEISS DotScan: Sensor optyczny do przechwytywania powierzchni swobodnych]({"xsmall":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.100.56.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","small":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.360.203.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","medium":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.768.432.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","large":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1024.576.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","xlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1280.720.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","xxlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1440.810.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","max":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg"} "ZEISS DotScan: Sensor optyczny do przechwytywania powierzchni swobodnych")

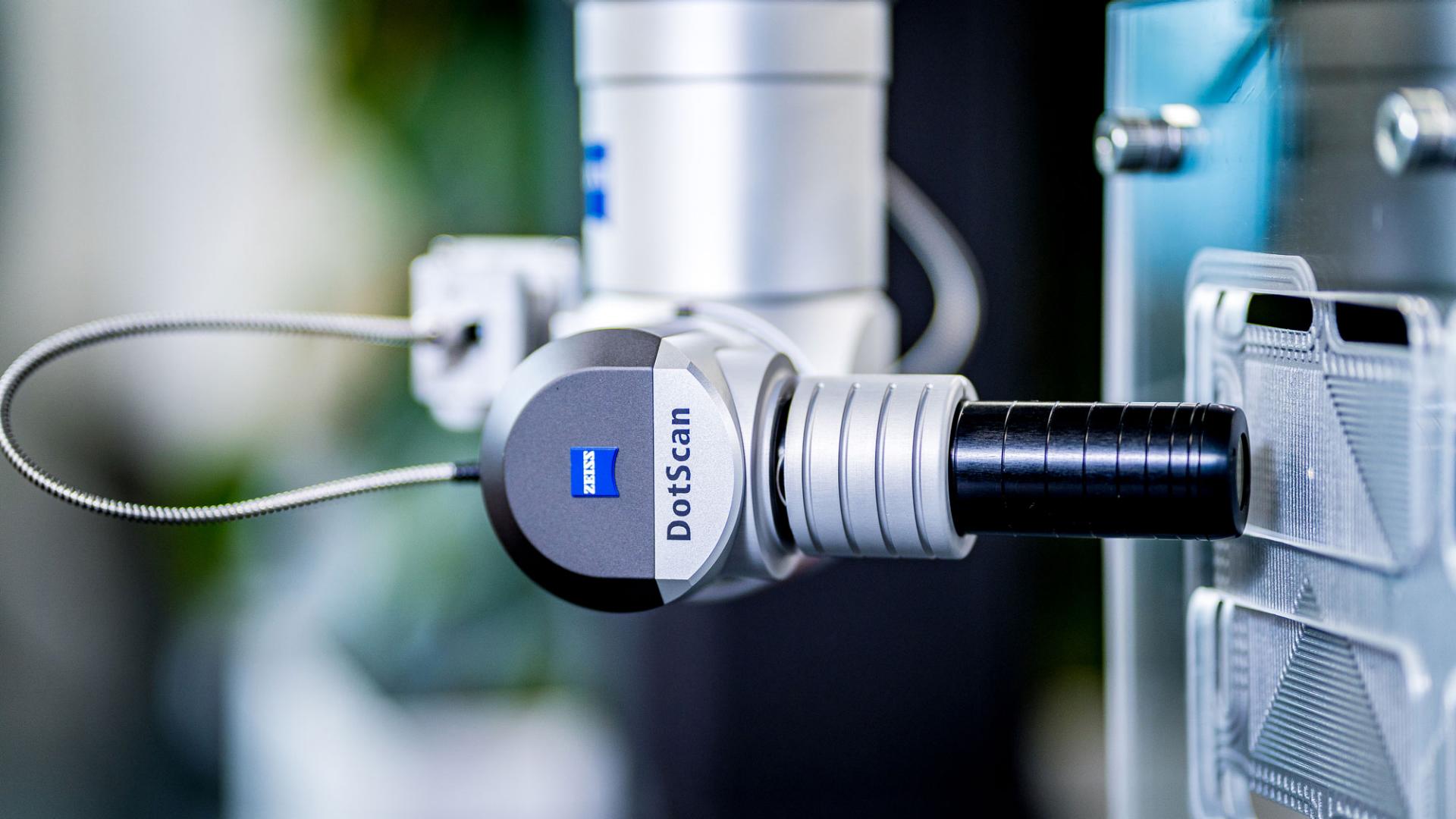

ZEISS DotScan to znakomite rozwiązanie do rejestrowania powierzchni swobodnych oraz najdrobniejszych struktur. Chromatyczne sensory światła białego – a zatem i ZEISS DotScan – są właściwym wyborem szczególnie w przypadku pomiaru delikatnych, miękkich, odblaskowych lub niskokontrastowych powierzchni, z którymi nie radzą sobie głowice z układami trzpieni lub kamerami.

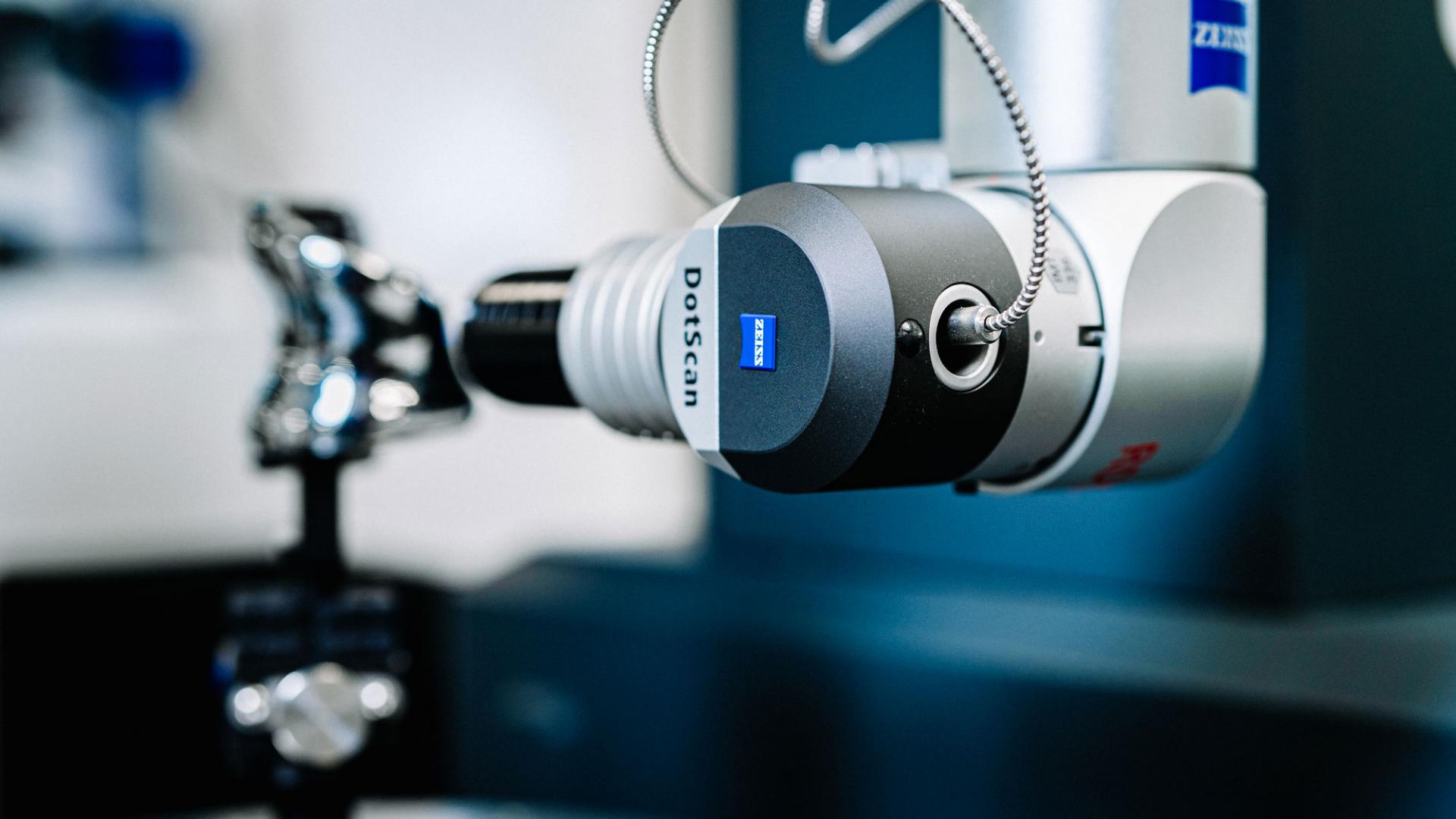

Dzięki sensorowi ZEISS DotScan powierzchnie silnie odbijające światło, np. metalowe podzespoły implantów stawu kolanowego, można mierzyć bez stosowania kontrastu. Pozwala to także rozróżnić powierzchnie pokryte przezroczystym lakierem od pozostałych warstw metalowych.
![ZEISS DotScan: Sensor optyczny do przechwytywania powierzchni swobodnych]({"xsmall":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.100.56.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","small":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.360.203.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","medium":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.768.432.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","large":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1024.576.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","xlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1280.720.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","xxlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1440.810.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","max":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg"} "ZEISS DotScan: Sensor optyczny do przechwytywania powierzchni swobodnych")
Zróżnicowane zastosowanie
Sensor ZEISS DotScan jest dostępny w trzech rozmiarach o trzech różnych zakresach pomiarowych: 10 mm, 3 mm i 1 mm. Sensor można automatycznie wymienić na inny sensor optyczny lub głowicę stykową w ramach jednego, sterowanego komputerowo cyklu. Oś obracająca się co 2,5° umożliwia ustawienie sensora ZEISS DotScan prostopadle do powierzchni skanowanego elementu.
A ponieważ minimalny kąt pomiaru sensora ZEISS DotScan 1 mm wynosi ±30°, umożliwia on pomiar także części o mocno zakrzywionej powierzchni. Dzięki trybowi pracy sensora można go użyć do pomiaru różnych materiałów z dowolnej strony. W połączeniu ze stołem obrotowym umożliwia on pomiar w czterech osiach.
