Optyczne współrzędnościowe maszyny pomiarowe
Wysoce precyzyjne systemy optyczne do różnych zadań pomiarowych
Pomiar bezstykowy z opcją pomiaru stykowego
Optyczne maszyny pomiarowe (VMM) z serii systemów optycznych od ZEISS wyróżniają się systemami kamer o wysokiej rozdzielczości, zmiennym oświetleniem i zaawansowanym oprogramowaniem i zapewniają szybkie oraz precyzyjne wyniki pomiarów. Dzięki bezstykowej, optycznej technice pomiarowej możliwe jest dokonywanie precyzyjnych pomiarów nawet wyjątkowo delikatnych, cienkościennych czy płaskich detali, takich jak elementy optyczne, części formowane wtryskowo, folie, części wykrawane i gięte. Aby rozszerzyć zakres zastosowań, systemy optyczne ZEISS można uzupełnić o dodatkowe głowice, zapewniając niezwykle precyzyjne pomiary optyczne i stykowe za pomocą jednej maszyny.

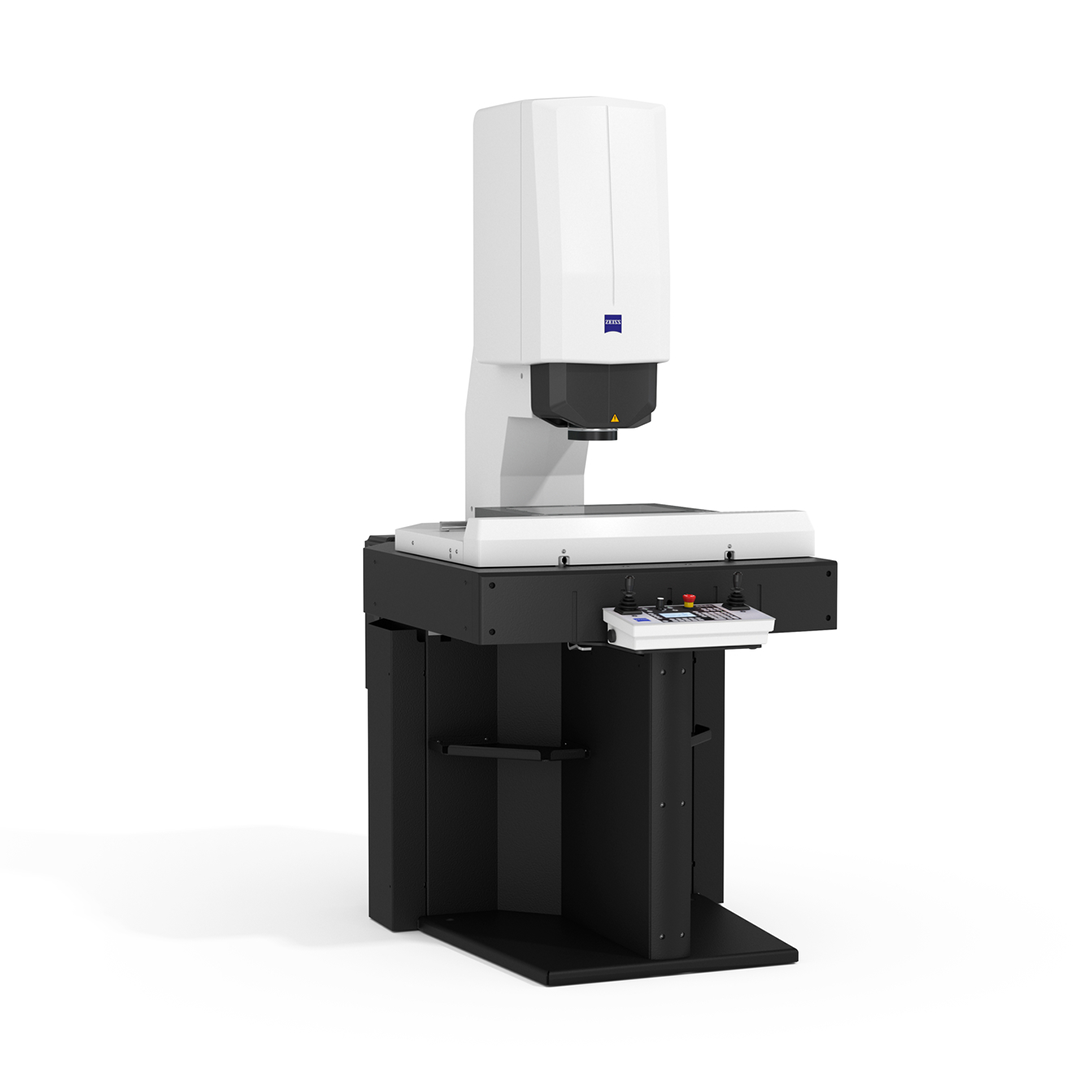

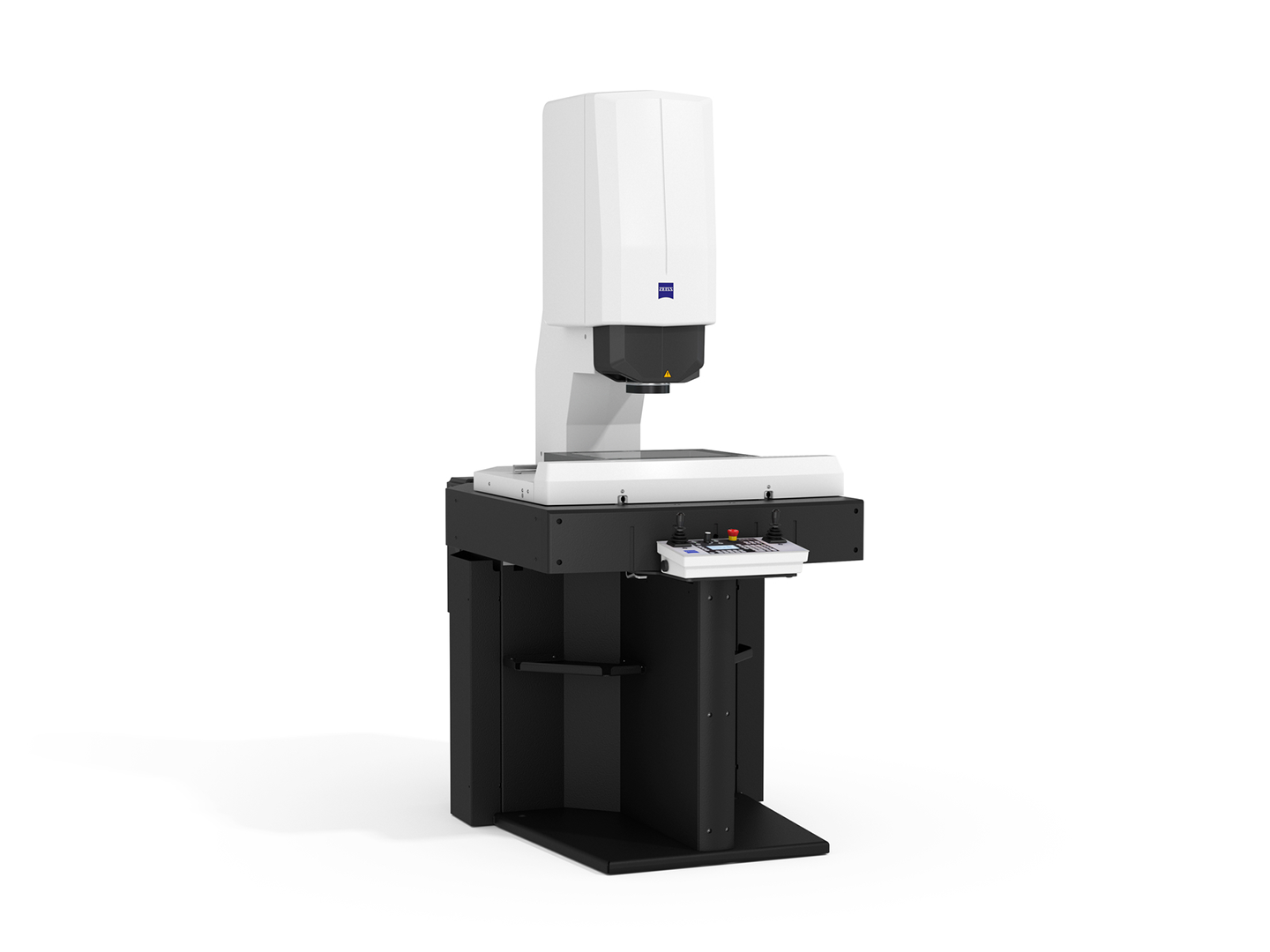

![ZEISS O-DETECT]({"xsmall":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.100.75.file/zeiss_o_detect_4_3.png","small":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.360.270.file/zeiss_o_detect_4_3.png","medium":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.768.576.file/zeiss_o_detect_4_3.png","large":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1024.768.file/zeiss_o_detect_4_3.png","xlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1280.960.file/zeiss_o_detect_4_3.png","xxlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original./zeiss_o_detect_4_3.png","max":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original./zeiss_o_detect_4_3.png"} "ZEISS O-DETECT")

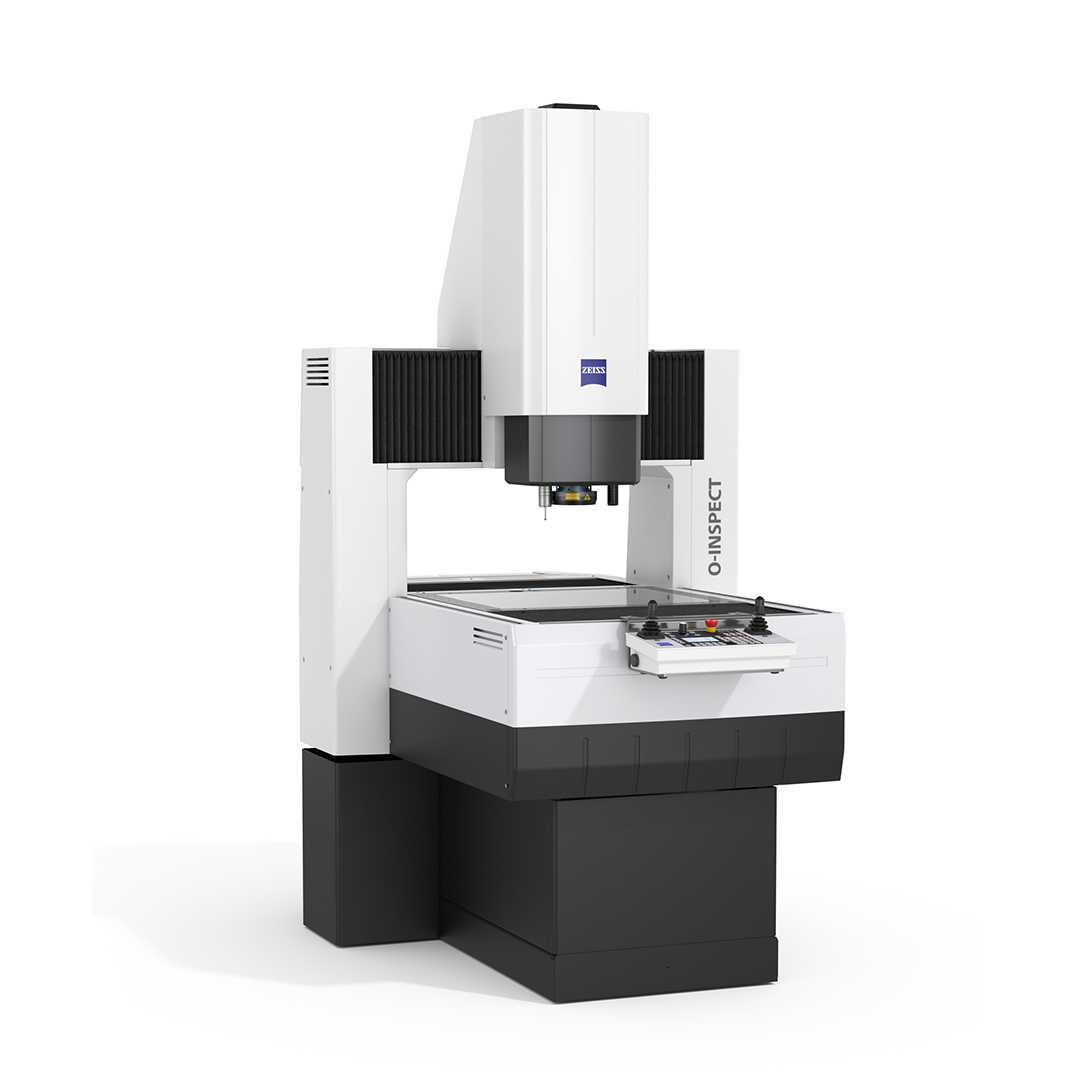

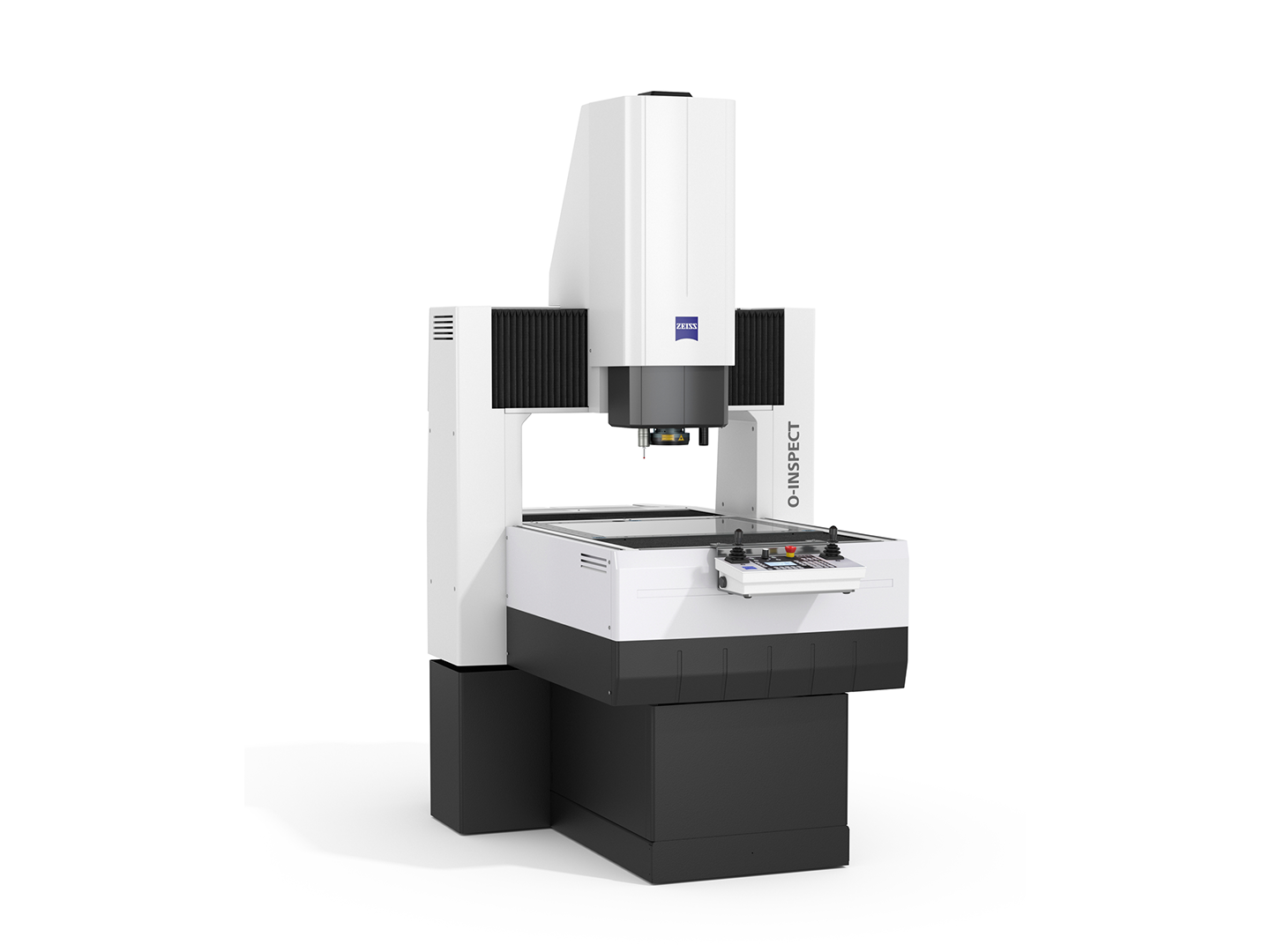

![ZEISS O-INSPECT]({"xsmall":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.100.75.file/zeiss_o_inspect_4_3.png","small":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.360.270.file/zeiss_o_inspect_4_3.png","medium":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.768.576.file/zeiss_o_inspect_4_3.png","large":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1024.768.file/zeiss_o_inspect_4_3.png","xlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1280.960.file/zeiss_o_inspect_4_3.png","xxlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original./zeiss_o_inspect_4_3.png","max":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original./zeiss_o_inspect_4_3.png"} "ZEISS O-INSPECT")

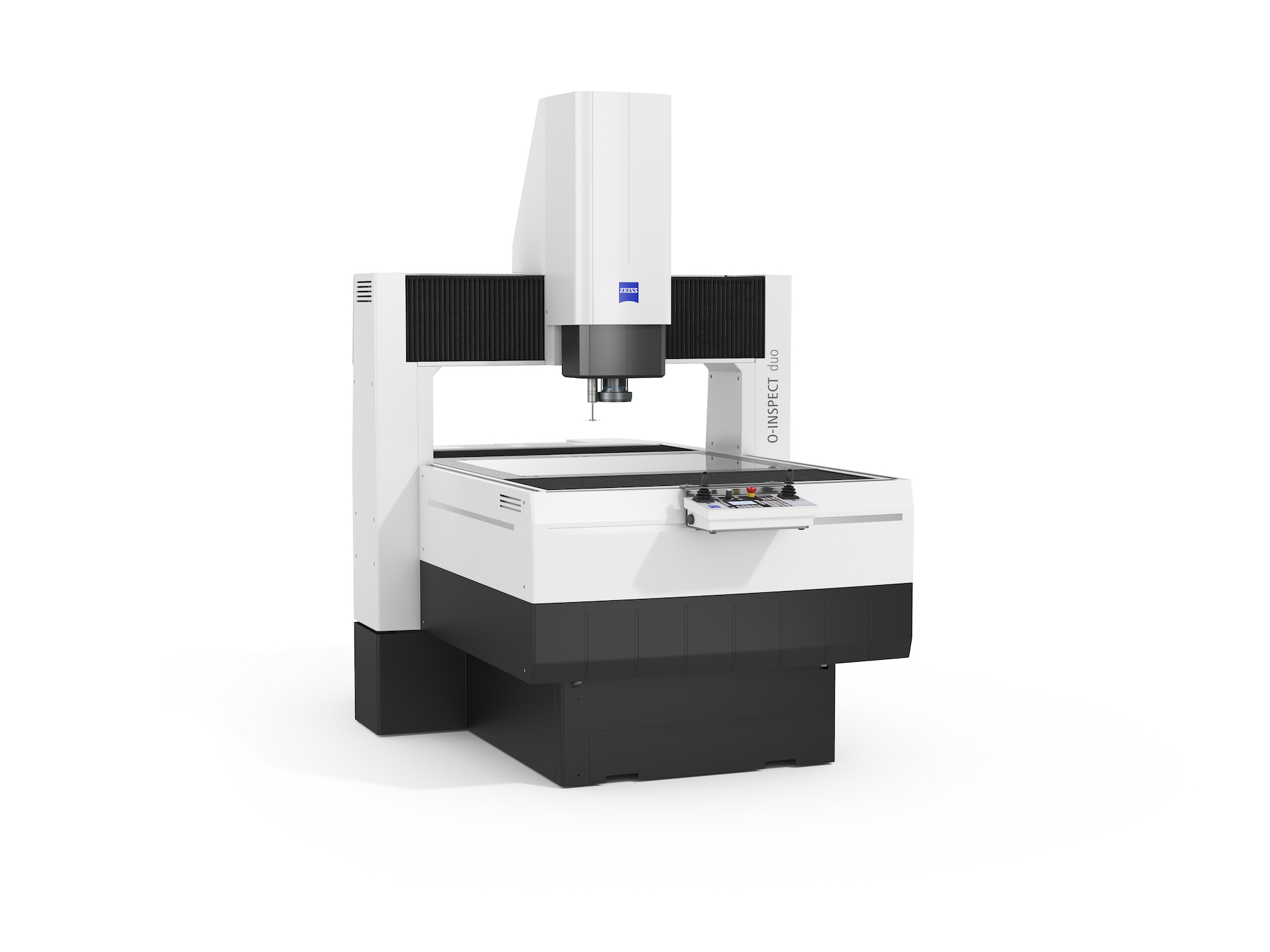

![ZEISS O-INSPECT duo]({"xsmall":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.100.75.file/zeiss-o-inspect-duo-perspective-taktil.jpg","small":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.360.270.file/zeiss-o-inspect-duo-perspective-taktil.jpg","medium":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.768.576.file/zeiss-o-inspect-duo-perspective-taktil.jpg","large":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1024.768.file/zeiss-o-inspect-duo-perspective-taktil.jpg","xlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1280.960.file/zeiss-o-inspect-duo-perspective-taktil.jpg","xxlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1440.1080.file/zeiss-o-inspect-duo-perspective-taktil.jpg","max":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original./zeiss-o-inspect-duo-perspective-taktil.jpg"} "ZEISS O-INSPECT duo")
![Multisensorowa maszyna pomiarowa]({"xsmall":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.100.75.0,221,1280,1181.file/multisensor.jpg","small":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.360.270.0,221,1280,1181.file/multisensor.jpg","medium":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.768.576.0,221,1280,1181.file/multisensor.jpg","large":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.1024.768.0,221,1280,1181.file/multisensor.jpg","xlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.1280.960.0,221,1280,1181.file/multisensor.jpg","xxlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.1280.960.0,221,1280,1181.file/multisensor.jpg","max":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/multisensor.jpg/_jcr_content/renditions/original.image_file.1280.960.0,221,1280,1181.file/multisensor.jpg"} "Multisensorowa maszyna pomiarowa")
Multisensorowa maszyna pomiarowa
Połączenie techniki pomiaru optycznego i stykowego

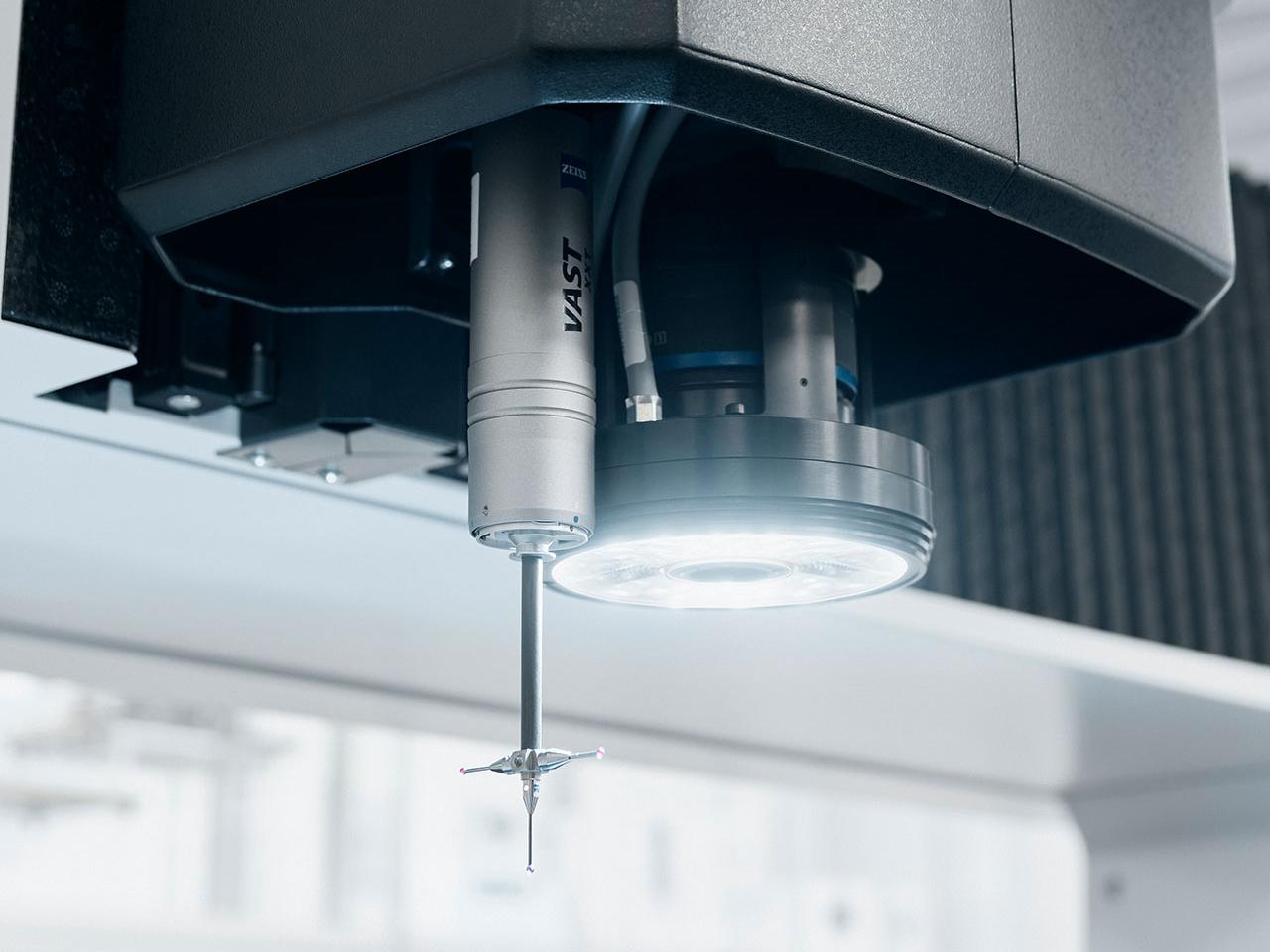

Wszystkie produkty z serii systemów optycznych są kompatybilne z głowicą stykową, dzięki czemu oprócz precyzyjnych pomiarów optycznych 2D umożliwiają również pozyskiwanie danych pomiarowych 3D metodą stykową. W zależności od modelu, stykowa głowica pomiarowa jest dostępna opcjonalnie lub dostarczana w standardzie.
![Różne rozmiary do różnych wymagań]({"xsmall":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.100.56.0,280,1280,1000.file/groessen.jpg","small":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.360.203.0,280,1280,1000.file/groessen.jpg","medium":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.768.432.0,280,1280,1000.file/groessen.jpg","large":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.1024.576.0,280,1280,1000.file/groessen.jpg","xlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.1280.720.0,280,1280,1000.file/groessen.jpg","xxlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.1280.720.0,280,1280,1000.file/groessen.jpg","max":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/groessen.jpg/_jcr_content/renditions/original.image_file.1280.720.0,280,1280,1000.file/groessen.jpg"} "Różne rozmiary do różnych wymagań")
Szeroki gama dostępnych rozmiarów
Różne rozmiary do różnych wymagań

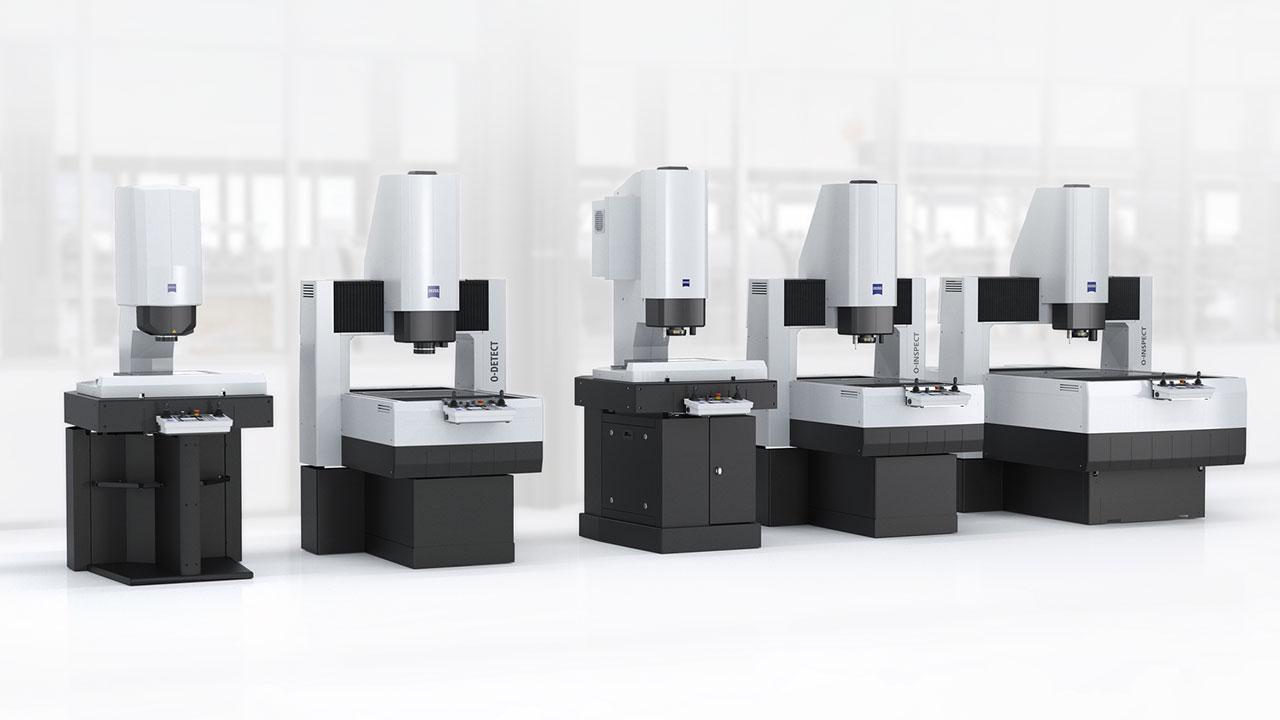

ZEISS O-DETECT i ZEISS O-INSPECT są dostępne w różnych rozmiarach i są odpowiednie do szerokiego zakresu zastosowań - od małych, delikatnych części po większe komponenty.
Porównanie parametrów technicznych
![ZEISS O-DETECT]({"xsmall":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.100.100.142,6,1219,1083.file/zeiss_o_detect_4_3.png","small":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.360.360.142,6,1219,1083.file/zeiss_o_detect_4_3.png","medium":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.768.768.142,6,1219,1083.file/zeiss_o_detect_4_3.png","large":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1024.1024.142,6,1219,1083.file/zeiss_o_detect_4_3.png","xlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1077.1077.142,6,1219,1083.file/zeiss_o_detect_4_3.png","xxlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1077.1077.142,6,1219,1083.file/zeiss_o_detect_4_3.png","max":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_detect_4_3.png/_jcr_content/renditions/original.image_file.1077.1077.142,6,1219,1083.file/zeiss_o_detect_4_3.png"} "ZEISS O-DETECT")
|
![ZEISS O-INSPECT]({"xsmall":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.100.100.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","small":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.360.360.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","medium":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.768.768.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","large":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1024.1024.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","xlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1083.1083.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","xxlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1083.1083.185,0,1268,1083.file/zeiss_o_inspect_4_3.png","max":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss_o_inspect_4_3.png/_jcr_content/renditions/original.image_file.1083.1083.185,0,1268,1083.file/zeiss_o_inspect_4_3.png"} "ZEISS O-INSPECT")
|
![ZEISS O-INSPECT duo]({"xsmall":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.100.100.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","small":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.360.360.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","medium":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.768.768.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","large":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1024.1024.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","xlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1280.1280.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","xxlarge":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1323.1323.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg","max":"https://www.zeiss.pl/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-o-inspect-duo-perspective-taktil.jpg/_jcr_content/renditions/original.image_file.1323.1323.296,5,1619,1328.file/zeiss-o-inspect-duo-perspective-taktil.jpg"} "ZEISS O-INSPECT duo")
|
|
|---|---|---|---|
|
Typ produktu |
Współrzędnościowa maszyna pomiarowa |
Współrzędnościowa maszyna pomiarowa |
Mikroskop i współrzędnościowa maszyna pomiarowa |
|
Zakres pomiarowy w dm |
3/2/2; 5/4/3 |
3/2/2; 5/4/3; 8/6/3 |
8/6/3 |
|
Sensor optyczny |
ZEISS INVENTA D1 |
ZEISS Discovery.V12 |
ZEISS Discovery.V12 |
|
Obiektyw |
5 MP, obraz czarno-biały |
Standard 100 lub scout 160 lub scout 240 |
Scout 160 c |
|
Powiększenie optyczne |
1,0x |
Do 12x |
Do 12x |
|
Inne głowice |
ZEISS XDT (opcjonalna) |
ZEISS VAST XXT |
ZEISS VAST XXT |
|
Kamera poglądowa |
tak |
Nie |
Nie |
|
Oświetlenie |
8-segmentowe oświetlenie pierścieniowe LED niebieskie i białe, oświetlenie koncentryczne i podświetlenie, rozproszone oświetlenie pierścieniowe (opcjonalne) |
8-segmentowe oświetlenie pierścieniowe LED czerwone i niebieskie, oświetlenie koncentryczne i podświetlenie |
16-segmentowe oświetlenie pierścieniowe LED białe, oświetlenie koncentryczne i podświetlenie |
|
Dokładność od |
1D: 1,6 μm + L/200 μm |
1D: 1,4 μm + L/250 μm |
1D: 1,5 µm + L/250 µm (8/6/3) |
|
Oprogramowanie |
ZEISS CALYPSO |
ZEISS CALYPSO |
ZEISS CALYPSO |
